Ada Toilet Grab Bar Requirements 2018

Rear wall grab bars shall be 36 915 mm long and mounted so 24 610 mm are to the transfer side of the toilet and the other 12 305 mm to the wall side.

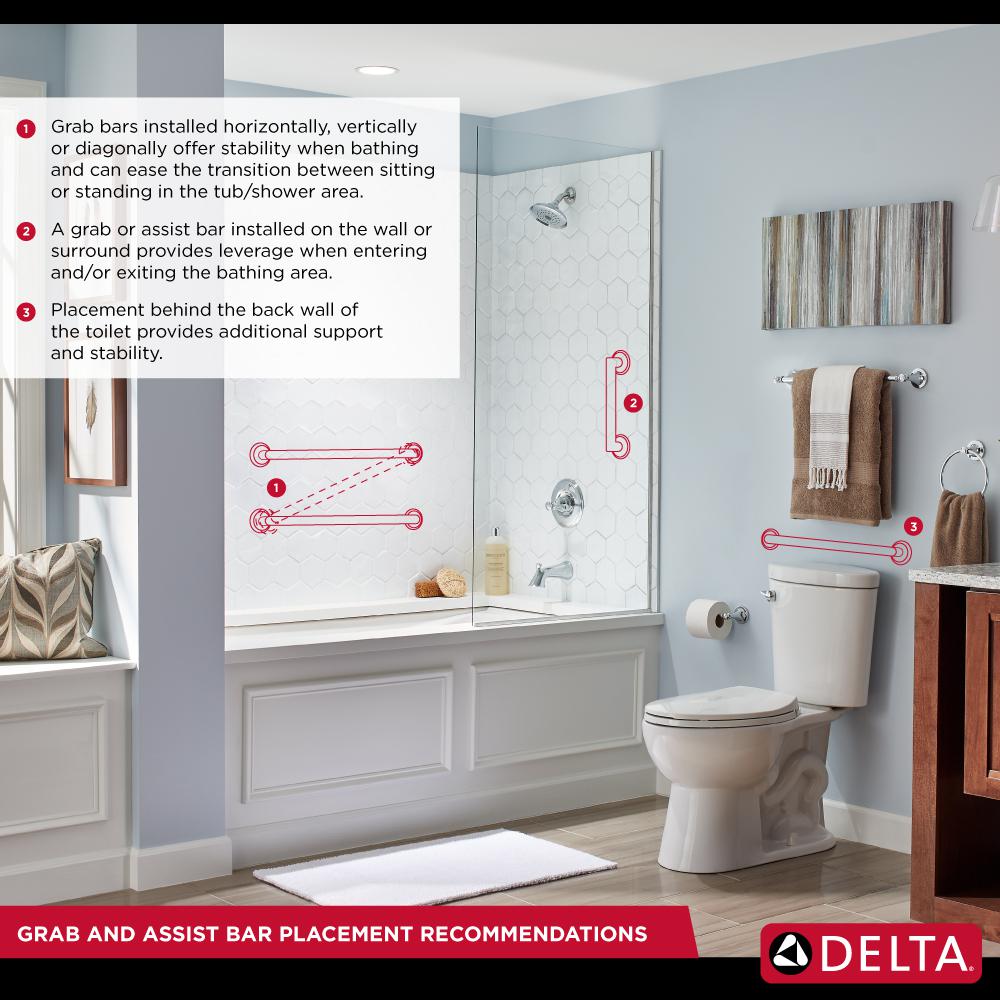

Ada toilet grab bar requirements 2018. Ada grab bar requirements. Toilet room fixtures and accessories. Toilets need to have horizontal bars behind and next to them and a vertical bar in front. Grab bars must be installed between 34 and 38 inches above the floor and there must be a separation between the grab bar and the wall surface of at least 1 1 2 inches.

The diameter of the pipe used for this kind of purpose must be between 1 1 4 to 1 1 2 inches. The source for the information below is the 2010 ada standards for accessible design. The height of the lower grab bar on the back wall of a bathtub shall comply with 607 4 1 1 or 607 4 2 1. Grab bars in toilet stall requirements.

Side wall the side wall grab bar shall be 42 inches 1065 mm long minimum located 12 inches 305 mm maximum from the rear wall and extending 54 inches 1370 mm minimum from the rear wall. Grab bar code requirements are included in the standard ansii icc a117 1 of the international code council. Towel sanitary napkins and waste receptacles max. Grab bars and any wall or other surfaces adjacent to grab bars shall be free of sharp or abrasive elements and shall have rounded edges.

Side wall the side wall grab bar shall be 42 inches 1065 mm long minimum located 12 inches 305 mm maximum from the rear wall and extending 54 inches 1370 mm minimum from the rear wall. Grab bars complying with the length and positioning shown in figures here under shall be provided. Toilet paper dispensers shall be below the grab bar and at least 19 inches 485 mm above the floor and no farther than 36 inches 915 mm from the rear wall measured to the far side of the dispensers. The bar must be 1 1 4 to 1 1 2 inches in diameter.

Grab bars in toilet stall requirements. Ada height requirements for grab bars by the toilet. An ada compliant grab bar handrail must be fully anchored and have a smooth surface that can be easily grabbed. Grab bars are not intended to be used as towel bars and vice versa.

19 water closet flush control max. Grab bars shall not rotate within their fittings. See also ada requirements for seats. Keep in mind that the measurements should be taken from the top edge of the grab bar and to the centerline of the mounting flange.

There is a lot to know about ada height requirements for grab bars by the toilet. A summary of these requirements is below. The grab bar handrail must be fully anchored with a smooth surface that can be easily grabbed. Water closet height min.

Ada figure 609 3 dimensions for rear grab bar installation.
