4040xp Door Closer Adjustment Instructions

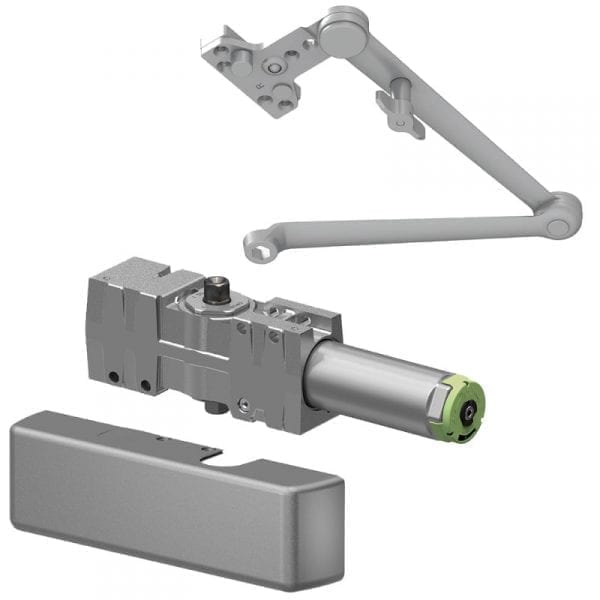

4040xp series door controls the lcn 4040xp series is a non handed surface mounted door closer.

4040xp door closer adjustment instructions. The lcn 4040 series has been designed to be used on metal or timber swinging commercial interior exterior doors and is ideally suited for hospitals educational institutional and other high traffic applications. Lcn closers and auto operators templates and instructions index subject. All lcn and falcon door closers will have 3 regulating valves and a spring adjustment all closers with a delay feature will have an additional 4th valve. Make adjustments below as required.

View and download lcn 4040xp installation instructions online. What are the steps to adjust a door closer. 4040xp door opening system pdf manual download. 4040xp series mounting document template number pull and pa side mounts 28102 top jamb push side mount 28103 eda mount 28267 cush arm spring cush mounts 28266 drop plate 28466.

For specific instructions on your closer see installation instructions here. Regular lcn closers have 3 regulating valves for general speed latch speed and backcheck. It meets ansi bhma a156 4 grade 1 standards and ada reduced opening force requirements. As 4040xp series regular or hold open except as listed below.

This closer is cul listed and ul listed for self closing doors without hold open and boasts a 30 year limited warranty. A wide choice of options mounting accessories and ease of installation offer maximum versatility. A 2 7 8 73 mm b 4 1 4 108 mm. What is the delay time adjustment on a delayed action closers.

So why choose the lcn 4040xp closer as you will see from the information provided above the lcn4040xp or also known as the lcn 4041 closer the. 110 a 6 3 8 162 mm b 7 3 4 197 mm or 180. 4040xp series closers ordered with eda or cush arms include 4040xp 201 fifth hole spacer to support the shoe. Maximum opening eda arm can be templated for points at.

Lcn door closer use a all weather fluid which remains stable in hot and cold weather meaning once the door closer has been installed and setup its ready to use and should need no further adjustment. The lcn 4040 series is a heavy duty non handed surface mounted closer. If the lcn closer has 4 regulating valves then the closer has the delayed action feature.
